Details
Technical Parameters:
Shielding range: radius 5 ~ 30 meters (-75dBm, indoor transparent environment, depending on the surrounding base station)
Transmitting power: the whole machine is 100W, 2G3G4G, each channel is 10W5G5W
Shielded signal types: 5G 4G (LTE FDD, TD-LTE), 3G (TD/WCDMA/CDMA2000), GSM900 (Mobile/Unicom 2G), CDMA (Telecom), DCS1800 (Mobile/Unicom 1800M) Wi-Fi (Bluetooth/ Wireless LAN), (output channel: ten outputs)
Features:
Ten channel outputs, 2G3G4G RF power per channel 10W; 5G RF power per channel 5W
Effectively shield all 2G, 3G, 4G 5G WIFI signals from Mobile, China Unicom and Telecom;
In particular, the power boost for 3G and 4G is strengthened, and the output power of each channel is guaranteed to be no less than 10W in full;
The host adopts DC 24V power supply and is equipped with a precision voltage regulator circuit. Even if the voltage fluctuates greatly, it will not affect the normal operation of the host;
The main body of the shield is designed by a professionally designed heat dissipation structure. The style is simple, beautiful, and generous without losing the fashion design.
High temperature resistant environment, can quickly transfer heat to the entire heat exchange surface (ie, heat sink fins) to avoid local accumulation of heat;
The air inlets and air outlets on both sides are symmetrically arranged to form convection, and the two silent fans immediately discharge the heat of the power amplifier to ensure stable operation of the host;
It can be continuously turned on and used for many years, with stable performance and long service life.
Precautions:
The effective shielding range of the mobile phone signal shielding device will be different at different usage sites. This is closely related to the signal field strength at the scene. Different types of mobile phones may not have the same shielding range on the same site;
Factors affecting the shielding range include, but are not limited to, distance to the base station, orientation, obstacles, wall material of the site building, installation height of the mobile phone shield, installation specifications, etc.
Each antenna has a frequency band identifier, which must correspond to the frequency band identifier on the host. Before the shield is turned on, it must ensure that each antenna connection is reliable. Never use the device without the antenna;
After the shield is operated for a long time, the surface temperature is about 40 to 50 ° C, which is normal. If the surface temperature is too high, turn off the power and try contacting your local dealer or dealer;
The normal installation height is 1.8 meters to 2.5 meters. Try to install it at a position where there is no obstacle between the target shielding area and the target shielding area. In the wall-mounting installation, the antenna is required to be vertically upward. When the table is placed, the antenna can be folded 90 degrees and then vertically upwards. There can be no AC power lines or other audio and video lines within 0.2 meters around the antenna;
In the process of use, in order to avoid possible interference to some electronic equipment, it should be kept as much as 1~2 meters with the following common equipment: audio, wireless microphone, radio, computer, TV, Wi-Fi router, etc.
Advantage Characteristics:
1.Ultra-thick Chassis and Dense Heat Sink Fin Structure Design
The main housing is made of 10.5mm aluminum profile with extremely high heat transfer efficiency.
The heat generated by the power amplifier chip can be quickly transferred to the case
Well-designed sets of 10.5mm heat sink teeth and heat sink fins
Maximize heat dissipation in a limited enclosure space

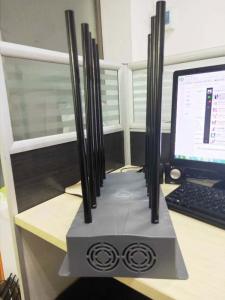

2.Built-in Dual Fan Convection Cooling
The interior of the main unit is designed with a convection duct, which can quickly and effectively discharge the internal heat.
The air inlet sucks the external normal airflow, and the two sets of fans at the air outlet strongly extract the internal hot airflow.
With 60x60mm ultra-quiet, large fan cooling fan, wind noise is almost imperceptible
3.Using High Quality Metal Shell Switching Power Supply
Detailed Technical Parameters
|
Frequency band parameter |
Aisle |
Frequency |
Average output power |
|
|
2G |
870-880 |
10W |
|
|
2G |
925-960 |
10W |
|
|
2G |
1805-1920 |
10W |
|
|
3G |
2010-2025MHz |
10W |
|
|
3G |
2110-2175 |
10W |
|
|
4G |
2300-2390MHz |
10W |
|
|
WIFI |
2400-2485MHz |
10W |
|
|
4G |
2550~2675MHz |
10W |
|
|
5G |
3400-3600 |
5W |
|
|
5G |
4800-4900 |
5W |
Host size:321*185*80(without hanging ears)
Antenna size:352*19*19(all the same length)
Total Weight:4.5Kg
Ambient temperature:-40℃~55℃
Relative humidity:35~85%
Power consumption:≤240W
power input:AC 160V~240V
Power Output:DC 24V/12A
Installation height:1.8m~2.5m
Installation Environment:Indoor
OEM Custom Service:
It can be modified and spread for Wi-Fi, GPS, Bluetooth, etc. as needed.
More than 50 sets of silk screen OEM services are available.
A neutral machine is available.
After Sales Service:
All products, such as non-human damage, are provided with a free replacement machine within one month, a free warranty within three years (one power supply warranty for some shields), lifetime maintenance, and maintenance costs after the warranty period.
The main control software of the mobile phone shielding system and mobile phone signal detection system provides a lifetime free upgrade service.
Technical consultation, training and program design services are provided free of charge for many years.
